Nylon Polarized Lens Red Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
Integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level. Delivers a polarization efficiency of ≥99% to efficiently cut off severe glare from water and snow.
Premium Hard-Coating & True REVO
A high-density hard-coating securely anchors the 12-14 layer nano-scale ion sputtering red REVO layers to the flexible nylon base. Achieves Grade 0 cross-cut adhesion, completely preventing cracking or peeling under extreme rimless frame-fitting tension.
Strict Color Consistency
Automated spectrophotometer monitoring ensures absolute batch-to-batch consistency for the red mirror finish with a strictly controlled Delta E < 1.2, eliminating visual discrepancies in bulk orders.
Extreme Environment Durability
Standard super hydrophobic outer layer (water contact angle > 110°) effortlessly repels water. Passes the rigorous 2-hour boiling saltwater test and 96-hour salt spray test with zero delamination, ensuring peak performance in marine environments.
Nylon Polarized Lens Red Mirror Coated

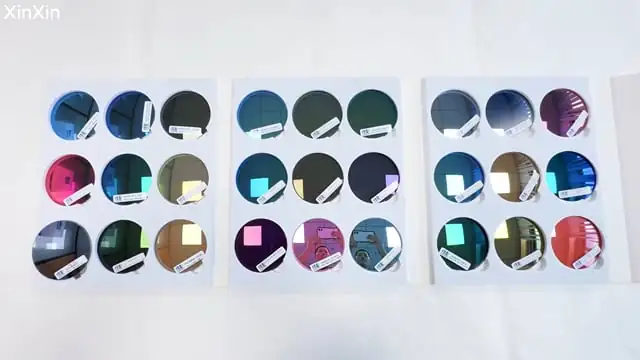

Click to play and see the optical performance and real-world clarity of our red nylon polarized mirror coated lens — showcasing the high-saturation red mirror finish and pure optical clarity.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Dark Grey Base + Red Mirror Coated (REVO) |
| Coating Method | 12-14 Layer Vacuum Ion Sputtering |
| VLT / Category | 8-18% / CAT 0, 1, 2, 3, 4 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Prism ≤0.12 Δ / Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by acetate's cooling shrinkage during fitting. The red REVO coating remains firmly anchored under high rim tension.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping or delamination during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance
- Exclusive REVO mirror color development (e.g., Fire Red, 24K Gold, Emerald Green)
- B-AR (Back-Surface AR) coating strictly recommended to eliminate rear ghost reflections
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Sample Lead Time: 7–10 working days
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Options: OEM/ODM, Bio-based Nylon option (ESG compliance), custom REVO colors
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Optical Purity: An exceptional Abbe Value of 52 eliminates the “rainbow effect” and edge color dispersion often found in high-base polarized lenses. This pristine clarity prevents costly customer returns and protects the reputation of your high-end collections.
- Molecular-Level Polarization: High-performance glare reduction provides a distinct competitive advantage for premium outdoor and marine lifestyle labels. Integrating Japan-imported PVA film delivers a polarization efficiency of ≥99% to cut severe environmental glare.
- True REVO Durability: Our 12-14 layer vacuum ion sputtering process achieves Grade 0 cross-cut adhesion (ASTM D3359). This securely anchors the red mirror coating under extreme rimless frame tension, virtually eliminating scrap from peeling or edge-chipping during CNC assembly.
- Color Consistency: Supply chain delays caused by mismatched lenses are completely avoided. Strict spectrophotometer monitoring ensures a Delta E < 1.2 across all red REVO mirror production runs, delivering reliable batch-to-batch matching.
- Comprehensive Compliance: Shield your business from liability risks with full adherence to FDA 21 CFR 801.410 impact tests and UV400 standards. These rigorous certifications guarantee mechanical safety and remove regulatory roadblocks for global export operations.
- B2B Customization: Scalable OEM production allows you to launch bold new colorways with minimal financial risk. Premium Eyewear Brands can access specialized Pantone matching and a variety of base curves starting at an accessible 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- Luxury Fashion Houses
- High-End Optical Chains
Overview
Outdoor collections require a polarized lens that controls severe glare while maintaining a bold aesthetic profile. The red mirror finish delivers the statement color story premium lines demand, and the underlying polarization ensures sharp visual clarity across highly reflective surfaces.
Vacuum ion sputtering secures the coating against edge-chipping, keeping your production line moving without the scrap rates typical of brittle finishes. Customized mirror stacks can be specified in your brief—Xinxin manages the entire run in-house, ensuring the prototype matches your volume shipment perfectly.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our red nylon polarized mirror coated lens is manufactured using nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
