Nylon Polarized Lens Solid Color Gray Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses, this gray polarized lens features an Abbe Value of 52, rivaling crown glass for ultimate optical purity. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
this gray polarized lens integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level. Delivers a polarization efficiency of ≥99%, completely cutting off glaring reflections from water and snow while enhancing visual contrast.
Zero Internal Stress Design
Manufactured with an advanced low-stress injection process. This molecular synergy ensures zero edge chipping and absolutely no delamination of the polarizing film on this gray tinted lens, even under the intense tension of CNC drilling for rimless assemblies.
Strict Color Consistency
Utilizing Precision Dip-Dyeing and automated spectrophotometer monitoring, we ensure strict batch-to-batch solid base color consistency for these gray lenses with a strictly controlled Delta E < 1.0.
UV400 Full Protection
this gray polarized lens offers uncompromised safety through strictly controlled material properties, delivering 100% blockage of harmful UVA and UVB rays (≤400nm, ≥99% blocking) while easily passing the FDA 21 CFR 801.410 drop-ball test.
Nylon Polarized Lens Solid Color Gray Tinted

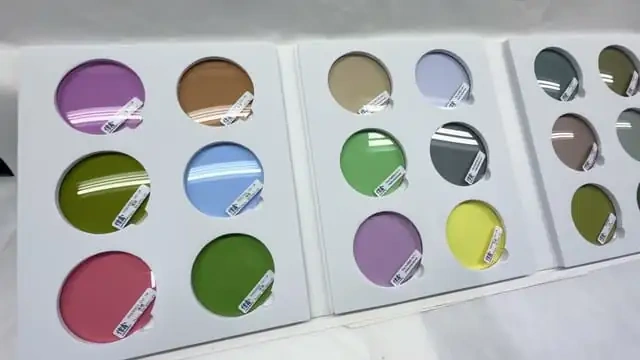

Click to play and see the optical performance and real-world clarity of our gray polarized lenses.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Gray |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8%–18% (CAT 3) — Full range CAT 0–4 available |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Plano 0.00D; Residual Astigmatism ≤0.09D; Residual Prism ≤0.12Δ, measured at the optical reference point. |
| Base Curve | 0.5C, 2C, 3C, 4C, 4.5C, 5C, 6C, 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / UKCA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving with oil, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking during fitting of these gray tinted lenses.
- Rimless / Drill-mount — Supreme tensile strength of these nylon lenses ensures zero edge chipping during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility for this polarized lens, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance on this gray lens
- Pantone matching for precise solid base colors of this gray polarized lens
- B-AR (Back-Surface AR) coating strictly recommended for base 6/8 to eliminate rear reflections on this gray tinted lens
- Coating upgrades for this polarized lens: HC / Oleophobic / Hydrophobic / Anti-static
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days, allowing you to verify quality before bulk order
- Bulk Lead Time: 15–20 working days (subject to quantity and customization complexity)
- Custom Options: OEM/ODM, Bio-based Nylon option (ESG compliance), laser logo, Pantone matching, B-AR coating for these gray lenses
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Polarization Efficiency Test Report, Salt Spray Test Report
Features & Applications
Technical Features
- Optical Purity: Engineered with an Abbe Value of 52, this optical-grade nylon rivals crown glass to eliminate color dispersion and prevent visual distortion.
- High-Efficiency Polarization: Premium Japan-imported PVA film achieves ≥99% polarization efficiency to block glare and provide superior clarity for Sports & Automotive Lifestyle Labels.
- Global Compliance: Certified UV400 protection blocks 100% of UVA and UVB rays to safeguard your business against regulatory barriers in international markets.
- Scrap Reduction: The low-stress injection molding and ultra-light 1.01 g/cm³ specific gravity prevent edge-chipping and film delamination during CNC frame drilling.
- Mechanical Safety: Compliance with the FDA 21 CFR 801.410 drop-ball test guarantees high impact resistance to minimize post-sale warranty claims.
- Scalable Customization: Sunglasses Manufacturers can access customized base curves (0.5C–8C) and Pantone color matching at a low 300-pair MOQ to minimize inventory risk.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- E-commerce D2C Brands
- High-End Optical Chains
- Lens Distributors
Overview
A flagship sunglasses line requires a dark neutral polarized lens that preserves natural color recognition under intense sunlight. This solid gray profile provides true-color perception and glare reduction, making it a reliable cornerstone for premium collections.
Tighter color matching and stable dye saturation prevent off-shade shipments that drift toward blue or purple and disrupt delivery schedules. Pantone-matched Couture Gray tints can be specified in your design brief — Xinxin manages the full customization flow in-house to deliver exact prototypes.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Precision Lamination & Low-Stress Injection — How Xinxin Crafts Polarized Lenses
Click to play and see how our gray polarized lenses are manufactured using molecular-level PVA film lamination and low-stress injection.
International Quality Standards
Active certifications — verified & compliant
