Nylon Sunglasses Lens Pink Golden Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52. Low internal stress design guarantees minimal optical distortion and zero edge color fringing, even on base 8+ shield lenses.
True REVO Dielectric Coating
Utilizes 12-14 layers of nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom, delivering a high-saturation pink golden mirror coated finish on each Nylon Sunglasses Lens Pink Golden Mirror Coated, which efficiently cuts off side and bottom glare.
Premium Hard-Coating Prerequisite
A high-density hard-coating securely anchors the brittle REVO layers to the flexible nylon base. This achieves Grade 0 cross-cut adhesion (ASTM D3359), completely preventing cracking or peeling under extreme frame-fitting tension.
Strict Color Consistency
Automated spectrophotometer monitoring ensures absolute batch-to-batch REVO reflection consistency with a strictly controlled Delta E < 1.2, eliminating visual discrepancies in bulk orders.
Super Hydrophobic & Oleophobic
Standard upgraded outer layer featuring a water contact angle > 110°. Effortlessly repels water, sweat, and fingerprints, maintaining pristine mirror reflections during intense activities.
Nylon Sunglasses Lens Pink Golden Mirror Coated

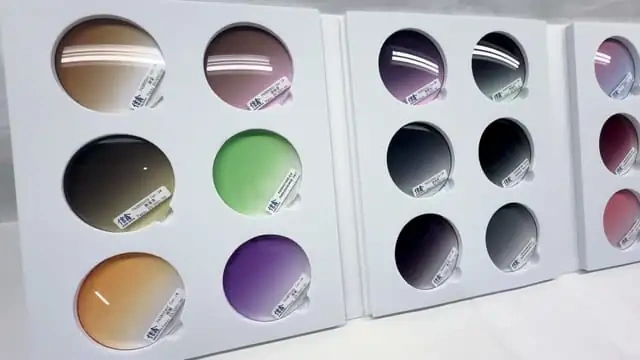

Click to play and see the optical performance and real-world clarity of our Nylon Sunglasses Lens Pink Golden Mirror Coated — showcasing the high-saturation pink golden mirror coated finish and pure optical clarity.
Technical Specifications
| Material | Optical Grade Nylon (Polyamide) |
| Color | Pink Golden Mirror Coated (REVO) |
| Coating Method | 12–14 Layer Ion-Assisted E-Beam Evaporated Dielectric Pink Golden Mirror Coating |
| VLT / Category | 18-43% / CAT 2 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Plano 0.00D; Residual Astigmatism ≤0.09D; Residual Prism ≤0.12Δ, measured at the optical reference point. |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm - 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / UKCA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by Acetate's cooling shrinkage during fitting. The REVO coating remains firmly anchored under high rim tension.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Pantone matching for precise base tint colors
- Exclusive REVO mirror color development (e.g., Fire Red, 24K Gold, Ice Blue)
- B-AR (Back-Surface AR) coating strictly recommended to eliminate rear ghost reflections
- Coating upgrades: Anti-Seawater / Anti-static / Premium Hard-Coating / Anti-Oleophobic / Anti-Hydrophobic / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days, allowing you to verify mirror coating quality before bulk order
- Bulk Lead Time: 15–20 working days (subject to quantity and customization complexity)
- Custom Options: OEM/ODM, Pantone matching, custom REVO colors, laser logo, custom packaging
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report
Features & Applications
Technical Features
- Optical Purity: An Abbe Value of 52 rivals crown glass for clarity, virtually eliminating the visual distortion that drives customer complaints. This premium nylon foundation protects your brand’s reputation for high-end optical performance.
- Advanced REVO Mirror Technology: Our 12-14 layer Ion-Assisted E-Beam Evaporation (PVD) process delivers a vibrant, high-saturation pink golden mirror coated finish on each Nylon Sunglasses Lens Pink Golden Mirror Coated. Consistent Delta E < 1.2 color matching guarantees uniform aesthetics across bulk orders, preventing costly supply chain delays.
- Coating Adhesion Reliability: Flaking and peeling during intense frame assembly are entirely avoided. A high-density hard-coating anchors the mirror layers to the flexible nylon base, passing ASTM D3359 Grade 0 testing with zero edge-chipping.
- High-Contrast Glare Rejection: Full UV400 compliance combined with the pink golden mirror coating on the Nylon Sunglasses Lens Pink Golden Mirror Coated efficiently cuts off glare while providing a fashion-forward warm yet vibrant aesthetic. This essential protection shields your business from regulatory roadblocks and liability risks.
- Hydrophobic & Oleophobic Performance: Smudges and water droplets are effortlessly repelled by an upgraded outer layer with a >110° contact angle. Sports & Active Lifestyle Labels rely on this feature to deliver flawless, long-lasting mirror reflections for active consumers.
- Mechanical Durability & Customization: Reliable FDA 21 CFR 801.410 shatter resistance minimizes warranty claims. We also offer tailored base curves (2C–8C) and custom diameters (up to 80mm) at an accessible 300-pair MOQ, allowing Premium Eyewear Brands to quickly prototype new collections.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Active Lifestyle Labels
- E-commerce D2C Brands
- Concept & Multi-Brand Stores
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Overview
A flagship sunglass collection built around bold aesthetics requires a mirror lens that delivers high-saturation reflection without compromising underlying optical clarity. The Nylon Sunglasses Lens Pink Golden Mirror Coated delivers a vibrant, fashion-forward pink-golden aesthetic that effectively cuts glare across varying light conditions.
Strict dielectric coating protocols hold the Nylon Sunglasses Lens Pink Golden Mirror Coated finish across every shipment, so your retail collection avoids the QA delays that stall production schedules. For collections with their own distinct look, custom curve and tint targets map directly to a sample-ready spec. Xinxin controls the entire Ion-Assisted E-Beam Evaporation (PVD) cycle in-house, keeping your design intent intact from the first prototype to the final retail shelf.
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our Nylon Sunglasses Lens Pink Golden Mirror Coated is manufactured using nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom.
International Quality Standards
Active certifications — verified & compliant
