Nylon Polarized Lens Green Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Optical Clarity
The 0.00D plano nylon construction has an Abbe value of 52, helping keep high-contrast views clean across curved lens designs.
High-Efficiency Polarization
Japan-imported PVA film provides ≥99% polarization to reduce reflected glare from turf, water, roads, and glass.
Flexible REVO Protection
A 12–14-layer ion-sputtered green mirror stack is secured by a durable hard coat for dependable edging, mounting, and daily use.
Controlled Color Matching
Spectrophotometer monitoring targets Delta E < 1.2 so the green mirror appearance remains consistent across production batches.
Outdoor-Ready Surface
The hydrophobic top coat resists water spotting and supports durable performance in humid, coastal, and active outdoor conditions.

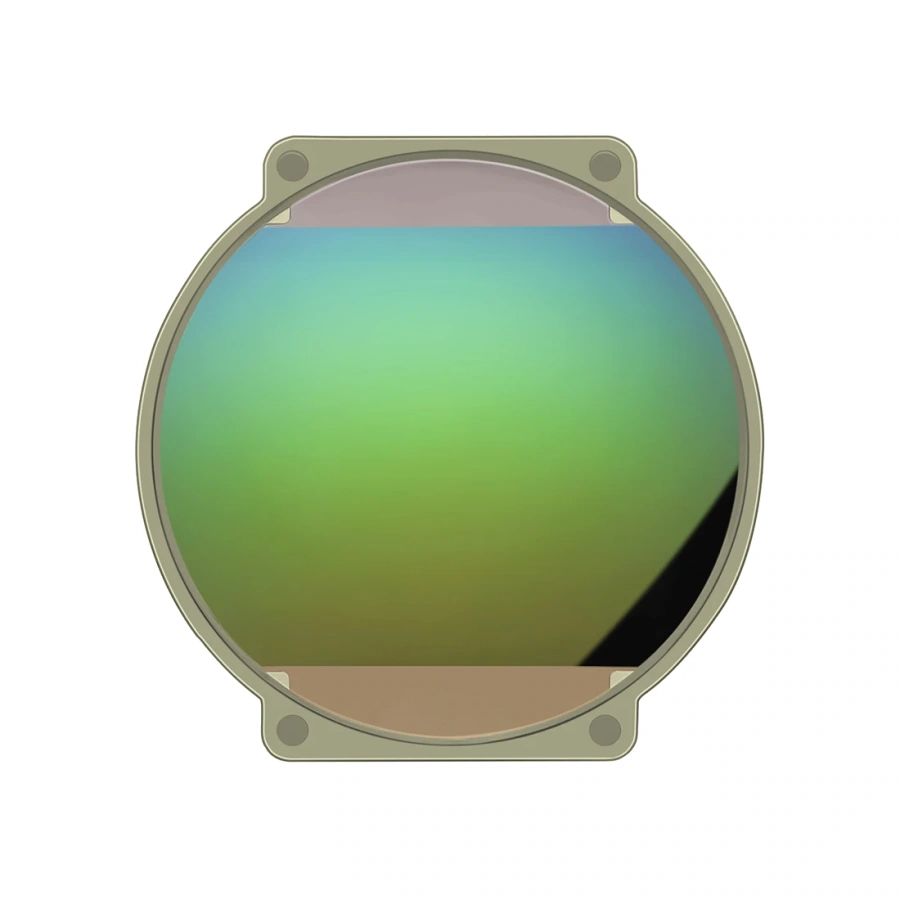

Nylon Polarized Lens Green Mirror Coated

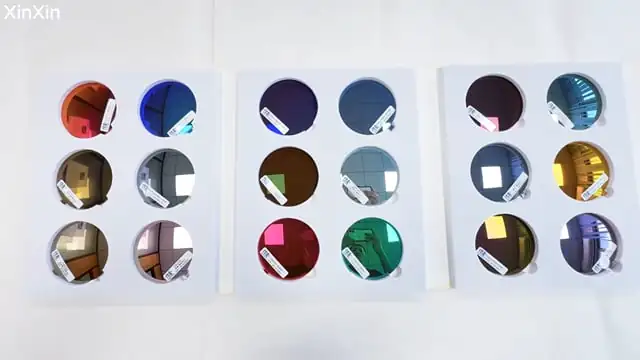

Click to play and view the green polarized mirror nylon lens finish and optical clarity in motion.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Dark Gray Base + Green Mirror Coated (REVO) |
| Coating Method | 12–14 Layer Vacuum Ion Sputtering |
| VLT / Category | 8–18% / CAT 3 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Prism ≤0.12 Δ / Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers prevents stress cracking caused by cooling shrinkage during fitting. The green REVO coating remains firmly anchored under high rim tension.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping or delamination during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance
- Exclusive REVO mirror color development (e.g., Fire Red, 24K Gold, Emerald Green)
- B-AR (Back-Surface AR) coating strictly recommended to eliminate rear ghost reflections
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, Bio-based Nylon option (ESG compliance), custom REVO colors
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Green Contrast Tuning: The green mirror treatment supports a composed, premium color direction for golf and performance eyewear programs without sacrificing clear underlying optics.
- Glare Control: A laminated PVA polarizer suppresses reflected light from fairways, pavements, water, and vehicle surfaces to support sharper visual comfort.
- Nylon Flexibility: The lightweight polyamide substrate tolerates curved sports-frame geometry and reduces the handling concerns associated with brittle coated materials.
- Coating Adhesion: Ion sputtering and hard-coat preparation deliver Grade 0 cross-cut adhesion, supporting clean processing during edging and assembly.
- Batch Reliability: Instrument-led color checks keep green mirror lots aligned for matched-pair orders, replenishment programs, and private-label rollouts.
- Export Specification: UV400 protection, impact-test support, and configurable base curves give buying teams a straightforward starting point for global product briefs.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- Water Sports & Marine Retailers
- E-commerce D2C Brands
Overview
Green mirror coatings bring a technical outdoor character to polarized eyewear without overwhelming a collection’s visual language. This nylon lens combines a flexible PA-12 base with high-efficiency PVA polarization for brands developing golf, travel, and active-lifestyle frames.
Xinxin can tune the mirror shade, visible-light transmission, curve, and surface-coating package for your program. The supplied product video offers a direct reference for the finish before sample development begins.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our green nylon polarized mirror coated lens is manufactured using nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom.
International Quality Standards
Active certifications — verified & compliant
.webp)
